Introduction: Understanding the Impact of Beam Angles in Commercial Lighting
Lighting design is essential in commercial spaces, impacting both functionality and ambiance. For procurement managers and project engineers, choosing the right GU10 LED bulbs involves more than selecting brightness or color temperature. One of the most critical factors is the beam angle, which determines how light is distributed within a space.
Beam angle affects the concentration, spread, and uniformity of illumination, directly influencing energy efficiency, visual comfort, and customer experience. In retail, hotels, restaurants, or office spaces, the difference between a spotlight effect and a floodlight effect can significantly change how a room feels and how products or architectural features are highlighted.
This guide explains GU10 LED beam angles, compares spot vs flood applications, and offers insights for commercial lighting decision-making.
Understanding GU10 LED Beam Angles
A GU10 LED beam angle refers to the spread of light emitted from the bulb, measured in degrees. A narrow angle produces a concentrated beam, while a wide angle distributes light broadly.
| Beam Type |
Beam Angle (°) |
Light Distribution |
Typical Use |
| Narrow / Spot |
15–35 |
Focused, high-intensity |
Accent lighting, display highlights |
| Medium |
36–60 |
Balanced focus and spread |
General spotlighting, task lighting |
| Wide / Flood |
60+ |
Broad, even coverage |
Ambient lighting, large open areas |
Beam angle is determined by the LED chip type, lens design, and reflector configuration. Proper selection ensures optimal lighting performance, minimizes glare, and reduces wasted energy.

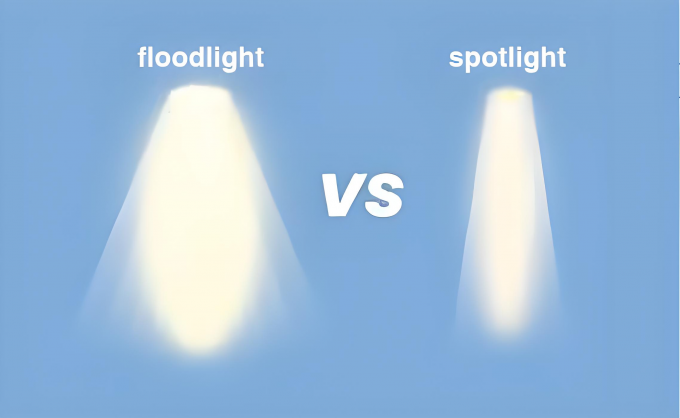

Spot vs Flood GU10 LEDs: Key Differences
The following table compares spot vs flood GU10 LEDs for quick reference:
| Feature |
Spot GU10 LED |
Flood GU10 LED |
| Beam Angle |
10–36° |
60°+ |
| Light Distribution |
Concentrated, intense |
Broad, uniform |
| Primary Use |
Accent lighting, artwork, product highlighting |
Ambient lighting, large areas, office floors |
| Advantages |
Focused effect, highlights details, reduces wasted light |
Even illumination, reduces dark spots, suitable for general areas |
| Considerations |
Not for ambient lighting; can cause shadows |
Less suitable for specific highlights |
Applications of GU10 Beam Angles in Commercial Spaces
| Commercial Space |
Spot GU10 Use |
Flood GU10 Use |
Example Color Temp |
| Hotels |
Highlight artwork, reception features |
General lobby and corridor illumination |
2700K–3000K (spot), 3500K–4000K (flood) |
| Restaurants |
Accent tables, display shelves |
Kitchen and bar general lighting |
2700K warm spots, neutral floodlights |
| Retail Stores |
Featured products, mannequins |
General aisle and floor lighting |
Narrow 24° spot, wide 60° flood |
| Offices / Conference Rooms |
Task lighting on desks or tables |
Open-plan ambient lighting |
4000K neutral flood, medium beam spots for tasks |
[Image Placeholder 3: Commercial space illuminated with spot and flood GU10 LEDs. Alt text: “GU10 LED lighting in hotel lobby/retail showing spot and flood beams.” Image caption: “Strategic use of spot and flood GU10 LEDs enhances accent and ambient lighting.”]
Beam Angle Selection Guide for B2B Buyers
- Define Lighting Objective: Accent, task, or ambient.
- Measure Distance to Target: Narrow spots for distant focal points; wide floods for broad coverage.
- Spacing and Overlap: Ensure even lighting, avoid dark spots or glare.
- Lumen Output & Color Temperature: Higher lumens for narrow spots; match color temperature with design intent.
- Dimmability & Controls: Especially useful for restaurants and hospitality; dimmable GU10 LEDs offer flexibility.
- Energy Efficiency & Compliance: Choose CE, RoHS, or UL-certified commercial LEDs to reduce operational costs and meet regulations.
Pro Tip: Use lighting simulation software or consult a lighting designer for complex layouts.
Common Mistakes and How to Avoid Them
| Mistake |
Result |
Solution |
| Using narrow spots as ambient light |
Uneven illumination, eye strain |
Use wide floods for general lighting |
| Overlapping wide floods excessively |
Glare, wasted energy |
Plan spacing and beam spread carefully |
| Ignoring CRI |
Distorted colors affecting product appearance |
Select high CRI (≥90) LEDs |
| Mismatched dimmers |
Flickering or buzzing |
Verify dimmer compatibility with LED bulbs |
Conclusion: Optimizing GU10 LED Beam Angles for Commercial Projects
The beam angle of GU10 LED bulbs is crucial in commercial lighting, influencing both visual impact and energy efficiency. Understanding the difference between spot and flood applications allows B2B buyers and engineers to:
- Maximize energy efficiency
- Enhance visibility for products or architectural features
- Create the desired ambiance in hotels, restaurants, retail, and offices
Careful evaluation of beam spread, lumen output, color temperature, and dimming requirements ensures informed decisions that optimize performance and reduce operational costs.
For a comprehensive understanding of GU10 LED technology and additional guidance on commercial projects, see our main guide: GU10 LED Bulbs – Your Ultimate Guide to Brilliant Lighting.
